» SIMPLIS DVM Test Report Overview
| General | |
| Schematic | 4.2_LTC3406B - DVM ADVANCED.sxsch |
| Testplan | dvm_advanced.testplan |
| Original Testplan Filename | 4.2_LTC3406B - DVM ADVANCED_efficiency.testplan |
| Date / Time | 2024-04-24 4:25 PM |
| Report Directory | DVM_REPORTS\2024-04-24-4_24_PM |
| Log File | dvm_advanced.log |
| # of Tests Run | 2 of 2 (1 Passed, 1 Skipped) |
| Total Time | 1m 30s |
| Design Specifications | |
| Circuit Name | LTC3406B |
| Description | Synchronous Buck |
| Input 1 | 5.000 V (4.5 V to 5.5 V) |
| Output 1 | 1.505 V (±5%) @ 1.5 A |
| Switching Frequency | 955kHz |
| Excel-compatible Results | |
| Scalar Results | dvm_advanced_table_scalars.txt |
| Spec Results | dvm_advanced_table_specs.txt |
| Statistic Results | dvm_advanced_table_statistics.txt |
| Statistic Specs | dvm_advanced_table_statspecs.txt |
| Overview Graphs | |

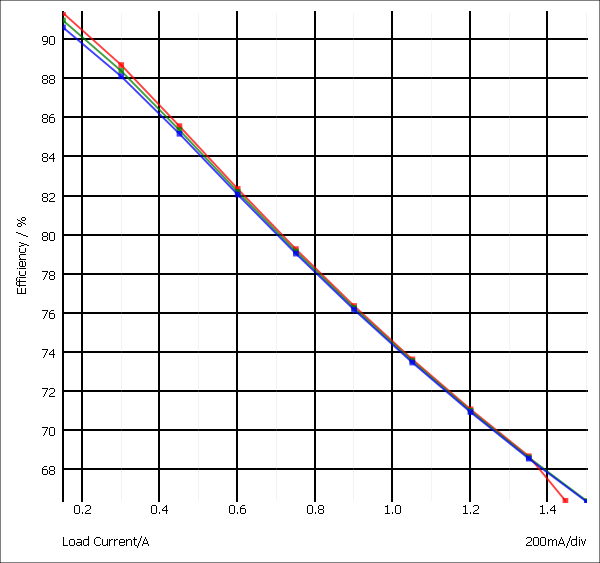

 Efficiency
Vin Max
Vin Min
Vin Nom
|
|
| SXGPH File | simplis_pop1_320.sxgph |
| Source Test | Efficiency|Generate Efficiency Curves |
| Test 1 of 2 | top ▲ |
| Test Label | Efficiency|Run Multi-Step Efficiency Simulation |
| Simulator | simplis |
| Test Report | Efficiency\Run Multi-Step Efficiency Simulation\report.txt.html |
| Status | PASS |
| Test Time | 1m 24s |
| Test 2 of 2 | top ▲ |
| Test Label | Efficiency|Generate Efficiency Curves |
| Simulator | N/A |
| Test Report | Efficiency\Generate Efficiency Curves\report.txt.html |
| Status | SKIP |
| Test Time | 4s |
